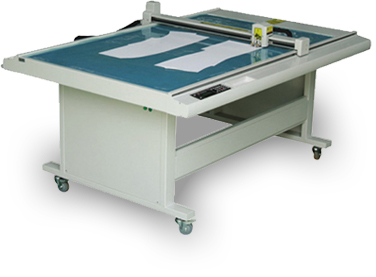

AOKE DE-Series
click here to visit our Facebook page about this product
DE series high speed cutting machine could meet the require for common cutting accuracy. It employs import synchronous belt for power driving, and work under high speed, convenience use, compatible with any CAD software.
It is greatly welcomed by customers and widely applied for high accuracy cutting or plotting.
DE series mainly used in following industries: garment, packaging, plastic box, die cutting, electron, sticker, sign, etc.
Specification
DE series machine is equipped with spring plotting pen, special cutting knife.
The creasing tool and paper feeding system could be selected as option for different application requires
| AOKE DE-Series | |
|---|---|
| Main Structure | Cutting platform, hesd, driving system, control cabinet, control micro computer, frame, vacuum pump(DE 0906) |
| Tool Type | Special steel blade |
| Pen Type | General signing pen, oil pen, ball pen |
| Driving Material | Import synchronous belt |
| Cut Materials | Red hard paper, plastic board, white board, kraft paper, fibre |
| Max speed | 1000 mm/s |
| Cutting Thickness | 0.5 mm - 2 mm |
| Cutting Precision | ≤ 0.1 mm |
| Overlapping Precision | ≤ 0.1 mm |
| Working time and character | Continuous work,operating computer and cutting at the same time,linear high-speed transmission for data. |
| Transmitting Port | International standards:parallel port / RSC232 serial port |
| Capacity of Buffer Area | Buffer area of large capaity,it caab finish high-speed transmission for data at a time |
| Instruction Set | International standards: HP-GL or DM-PL form can be selected selected. It is compatible with all kinds of CAD softwares |
| Numerical control board | LTD, all-Chinese operating menu, contact button |
| Voltage | AC 220v |
| Fuse Standard | 5A |
Available Table Model Size
The following is the list of available table model size for DE-Series:
| TABLE MODEL | WORKING AREA (L x W) in mm | MAX MATERIAL SIZE (L x W) in mm | PHYSICAL SIZE (L x W x H) in mm |
|---|---|---|---|
| 1812 | 1800 x 1200 | 2010 x 1360 | 2240 x1670 x 1050 |
| 1809 | 1800 x 900 | 2010 x 1060 | 2240 x 1370 x 1050 |
| 1512 | 1500 x 1200 | 1710 x 1360 | 1940 x 1670 x 1050 |
| 1509 | 1500 x 900 | 1710 x 1060 | 1940 x 1370 x 1050 |
| 1209 | 1200 x 900 | 1410 x 1060 | 1640 x 1370 x 1050 |
| 0906 | 900 x 600 | 1110 x 760 | 1340 x 1070 x 1050 |
